#include <umap.h>

Inheritance diagram for Map:

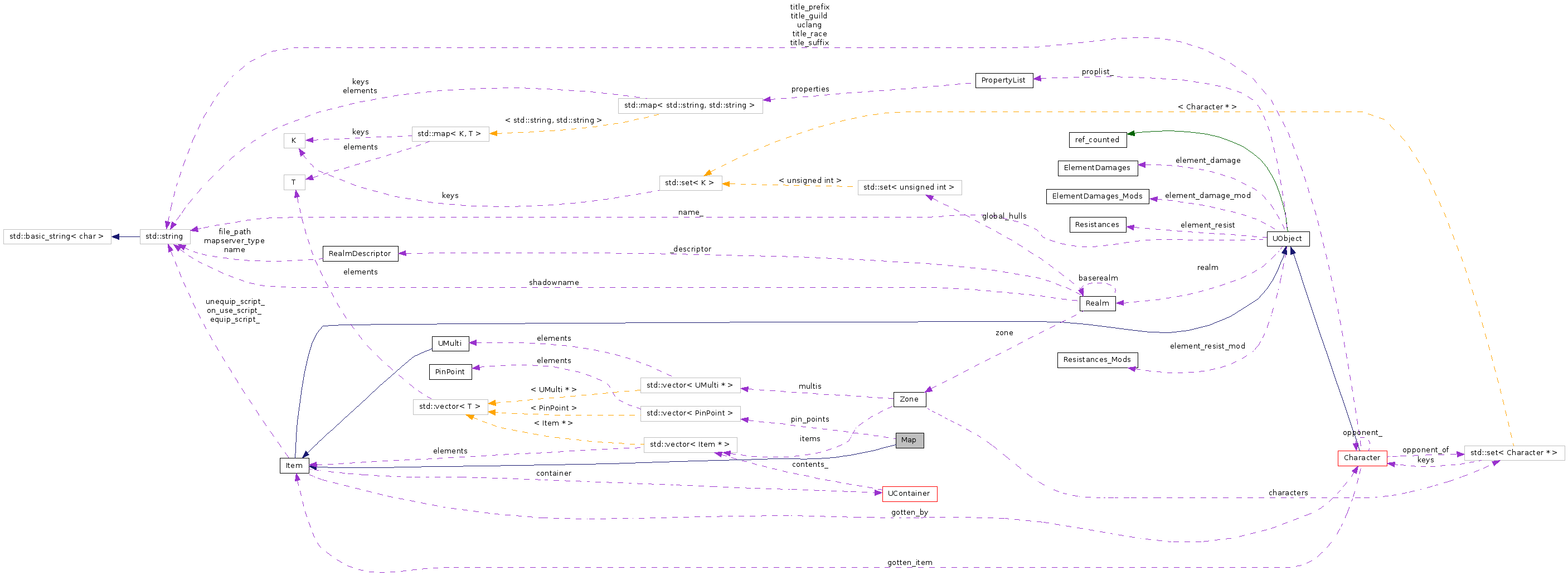

Collaboration diagram for Map:

Public Types
typedef PinPoints::iterator	pin_points_itr
typedef std::vector< PinPoint >	PinPoints
Public Member Functions
virtual Item *	clone () const
u16	get_xeast ()
u16	get_xwest ()
u16	get_ynorth ()
u16	get_ysouth ()
virtual u16	gumpXtoWorldX (u16 gumpx)
virtual u16	gumpYtoWorldY (u16 gumpy)
virtual bool	msgCoordsInBounds (PKTBI_56 *msg)
virtual u16	worldXtoGumpX (u16 worldx)
virtual u16	worldYtoGumpY (u16 worldy)
Public Attributes
bool	editable
u16	gumpheight
u16	gumpwidth
PinPoints	pin_points
bool	plotting
Protected Member Functions
	Map (const MapDesc &mapdesc)
virtual	~Map ()
virtual void	builtin_on_use (Client *client)
virtual BObjectImp *	get_script_member (const char *membername) const
virtual BObjectImp *	get_script_member_id (const int id) const
virtual void	printPinPoints (std::ostream &os) const
virtual void	printProperties (std::ostream &os) const
virtual void	readProperties (ConfigElem &elem)
virtual bool	script_isa (unsigned isatype) const
virtual BObjectImp *	script_method (const char *methodname, Executor &ex)
	id test
virtual BObjectImp *	script_method_id (const int id, Executor &ex)
virtual BObjectImp *	set_script_member (const char *membername, int value)
	id test
virtual BObjectImp *	set_script_member_id (const int id, int value)
	id test
Private Types
typedef Item	base
Private Member Functions
	Map (const Map &map)
Map &	operator= (const Map &map)
Private Attributes
u16	xeast
u16	xwest
u16	ynorth
u16	ysouth
Friends
Item *	Item::create (const ItemDesc &itemdesc, u32 serial)

Detailed Description

Definition at line 25 of file umap.h.

Member Typedef Documentation

typedef Item Map::base [private]

Reimplemented from Item.

Definition at line 27 of file umap.h.

typedef PinPoints::iterator Map::pin_points_itr

Definition at line 35 of file umap.h.

typedef std::vector<PinPoint> Map::PinPoints

Definition at line 33 of file umap.h.

Constructor & Destructor Documentation

Map::Map ( const MapDesc & mapdesc ) [protected]

Definition at line 36 of file umap.cpp.

Map::~Map ( ) [protected, virtual]

Definition at line 50 of file umap.cpp.

Map::Map ( const Map & map ) [private]

Member Function Documentation

void Map::builtin_on_use ( Client * client ) [protected, virtual]

Reimplemented from Item.

Definition at line 133 of file umap.cpp.

References gumpheight, gumpwidth, PacketWriterDefs::PacketInterface::offset, pin_points, PktHelper::PacketOut< T >::Send(), UObject::serial_ext, PKTBI_56::TYPE_ADD, PKTBI_56::TYPE_REMOVE_ALL, worldXtoGumpX(), worldYtoGumpY(), PacketWriterDefs::PacketWriter< _id, _size, _sub >::Write(), PacketWriterDefs::PacketWriter< _id, _size, _sub >::WriteFlipped(), xeast, xwest, ynorth, and ysouth.

Here is the call graph for this function:

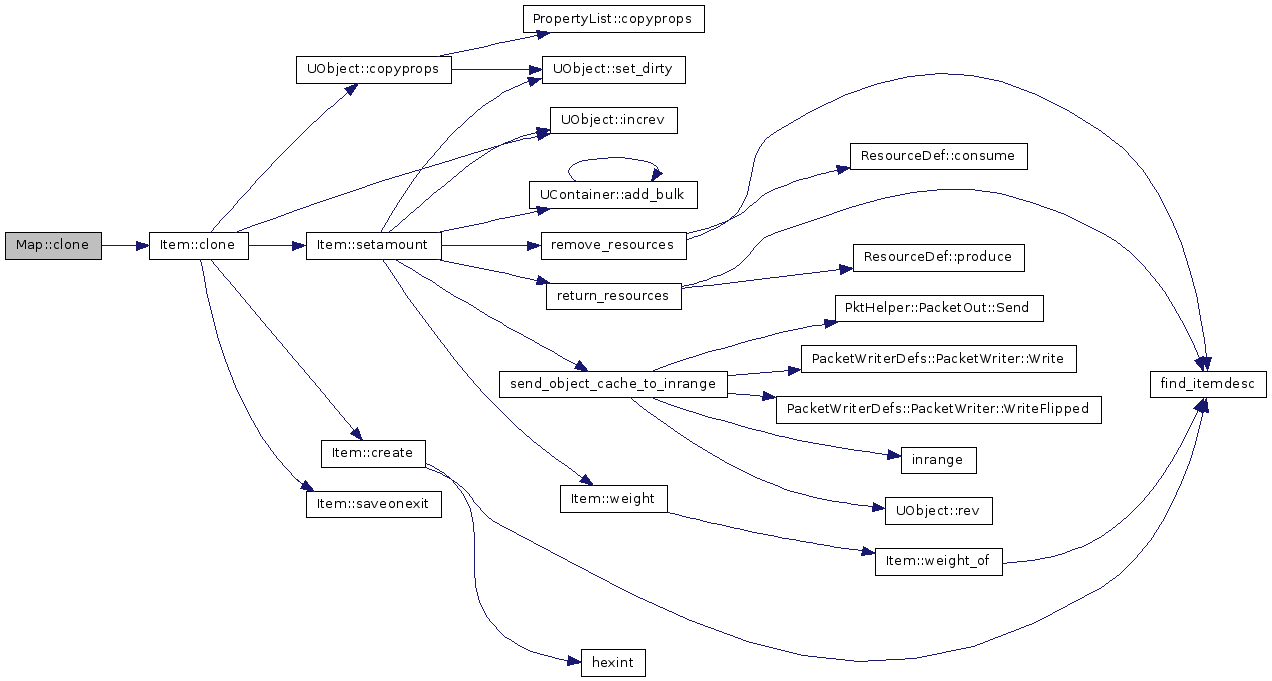

Item * Map::clone ( ) const [virtual]

Reimplemented from Item.

Definition at line 437 of file umap.cpp.

References Item::clone(), editable, gumpheight, gumpwidth, pin_points, plotting, xeast, xwest, ynorth, and ysouth.

Here is the call graph for this function:

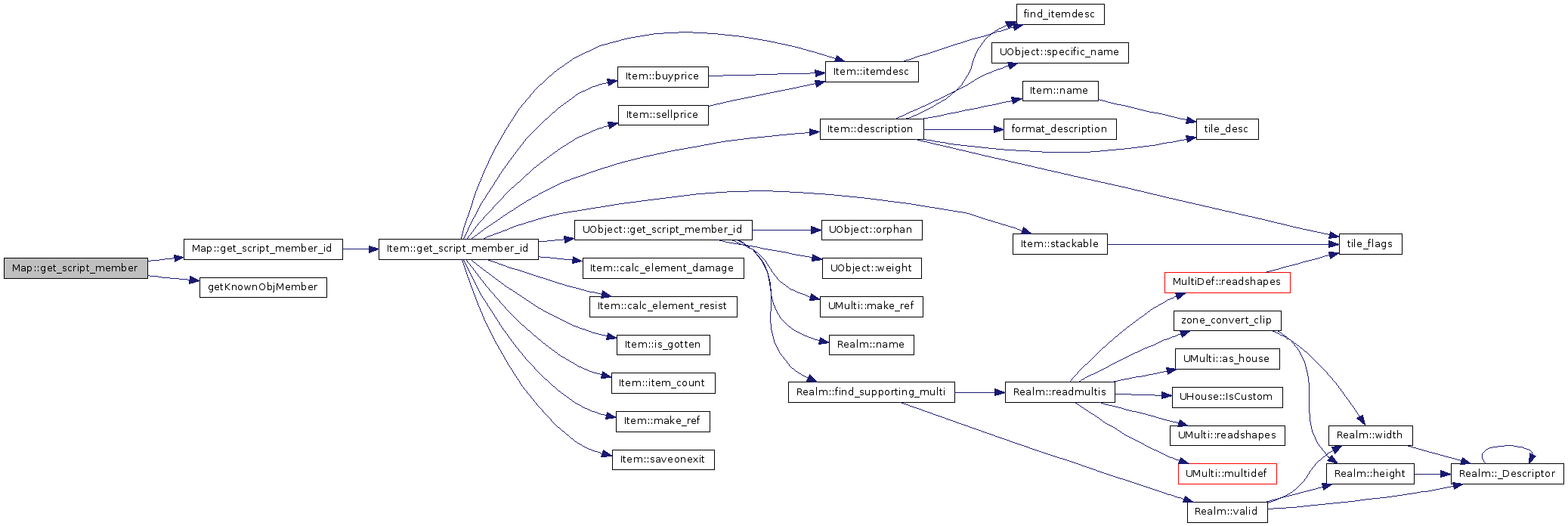

BObjectImp * Map::get_script_member ( const char * membername ) const [protected, virtual]

Reimplemented from Item.

Definition at line 2882 of file uoscrobj.cpp.

References get_script_member_id(), getKnownObjMember(), and ObjMember::id.

Here is the call graph for this function:

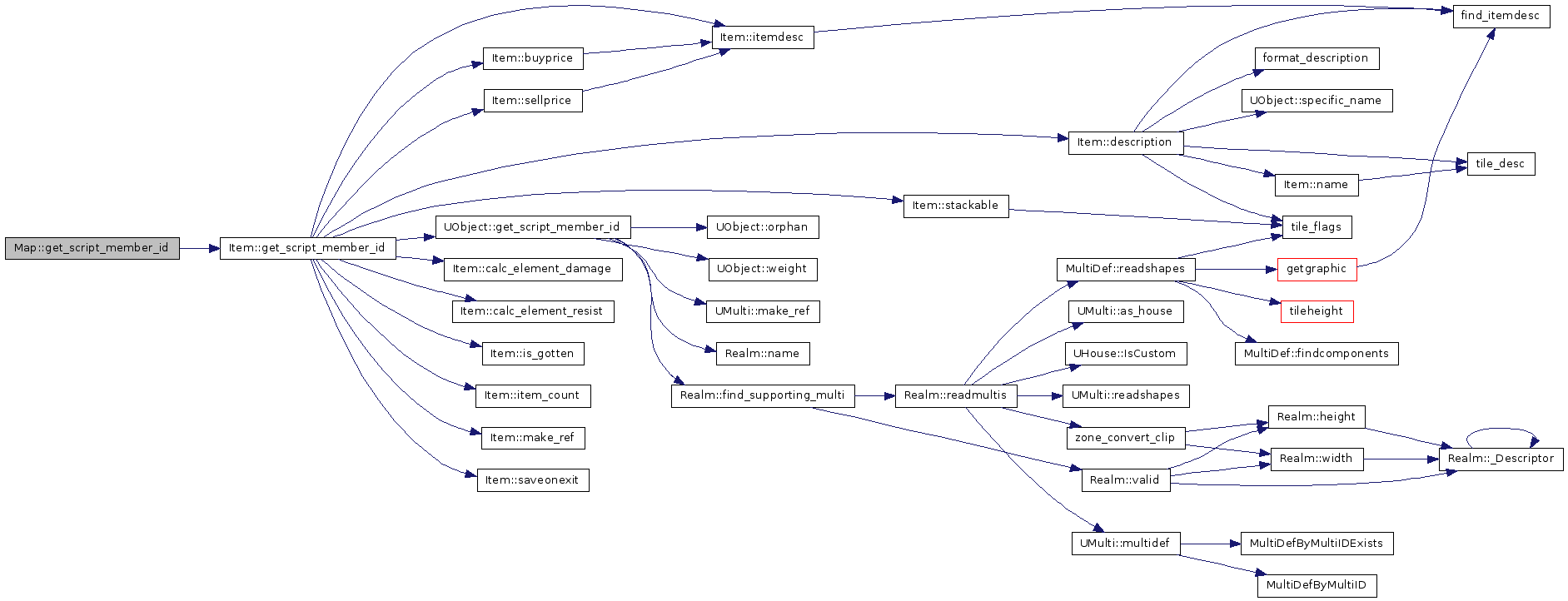

BObjectImp * Map::get_script_member_id ( const int id ) const [protected, virtual]

Reimplemented from Item.

Definition at line 2864 of file uoscrobj.cpp.

References Item::get_script_member_id(), gumpheight, gumpwidth, MBR_GUMPHEIGHT, MBR_GUMPWIDTH, MBR_XEAST, MBR_XWEST, MBR_YNORTH, MBR_YSOUTH, xeast, xwest, ynorth, and ysouth.

Referenced by get_script_member().

Here is the call graph for this function:

Here is the caller graph for this function:

u16 Map::get_xeast ( ) [inline]

Definition at line 38 of file umap.h.

References xeast.

Referenced by gumpXtoWorldX(), msgCoordsInBounds(), and worldXtoGumpX().

Here is the caller graph for this function:

u16 Map::get_xwest ( ) [inline]

Definition at line 37 of file umap.h.

References xwest.

Referenced by gumpXtoWorldX(), msgCoordsInBounds(), and worldXtoGumpX().

Here is the caller graph for this function:

u16 Map::get_ynorth ( ) [inline]

Definition at line 39 of file umap.h.

References ynorth.

Referenced by gumpYtoWorldY(), msgCoordsInBounds(), and worldYtoGumpY().

Here is the caller graph for this function:

u16 Map::get_ysouth ( ) [inline]

Definition at line 40 of file umap.h.

References ysouth.

Referenced by gumpYtoWorldY(), msgCoordsInBounds(), and worldYtoGumpY().

Here is the caller graph for this function:

u16 Map::gumpXtoWorldX ( u16 gumpx ) [virtual]

Definition at line 408 of file umap.cpp.

References get_xeast(), get_xwest(), and gumpwidth.

Referenced by handle_map_pin().

Here is the call graph for this function:

Here is the caller graph for this function:

u16 Map::gumpYtoWorldY ( u16 gumpy ) [virtual]

Definition at line 415 of file umap.cpp.

References get_ynorth(), get_ysouth(), and gumpheight.

Referenced by handle_map_pin().

Here is the call graph for this function:

Here is the caller graph for this function:

bool Map::msgCoordsInBounds ( PKTBI_56 * msg ) [virtual]

Definition at line 396 of file umap.cpp.

References cfBEu16, get_xeast(), get_xwest(), get_ynorth(), get_ysouth(), PKTBI_56::pinx, and PKTBI_56::piny.

Referenced by handle_map_pin().

Here is the call graph for this function:

Here is the caller graph for this function:

Map& Map::operator= ( const Map & map ) [private]

void Map::printPinPoints ( std::ostream & os ) const [protected, virtual]

Definition at line 73 of file umap.cpp.

References pf_endl, and pin_points.

Referenced by printProperties().

Here is the caller graph for this function:

void Map::printProperties ( std::ostream & os ) const [protected, virtual]

Reimplemented from Item.

Definition at line 54 of file umap.cpp.

References editable, gumpheight, gumpwidth, pf_endl, printPinPoints(), Item::printProperties(), xeast, xwest, ynorth, and ysouth.

Here is the call graph for this function:

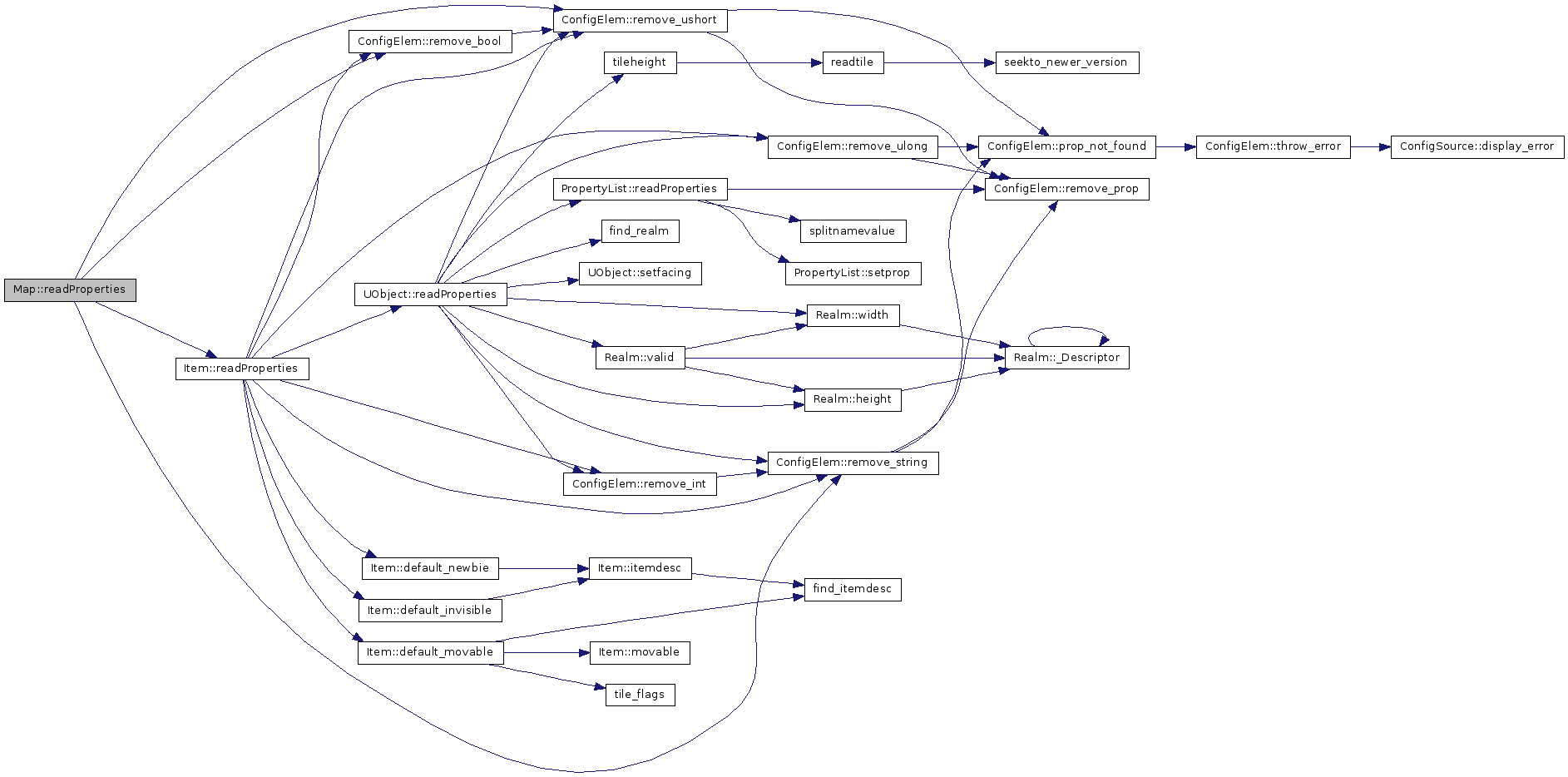

void Map::readProperties ( ConfigElem & elem ) [protected, virtual]

Reimplemented from Item.

Definition at line 101 of file umap.cpp.

References editable, gumpheight, gumpwidth, pin_points, Item::readProperties(), ConfigElem::remove_bool(), ConfigElem::remove_string(), ConfigElem::remove_ushort(), PinPoint::x, UObject::x, xeast, xwest, PinPoint::y, UObject::y, ynorth, and ysouth.

Here is the call graph for this function:

bool Map::script_isa ( unsigned isatype ) const [protected, virtual]

Reimplemented from Item.

Definition at line 3700 of file uoscrobj.cpp.

References POLCLASS_MAP, and Item::script_isa().

Referenced by script_method_id().

Here is the call graph for this function:

Here is the caller graph for this function:

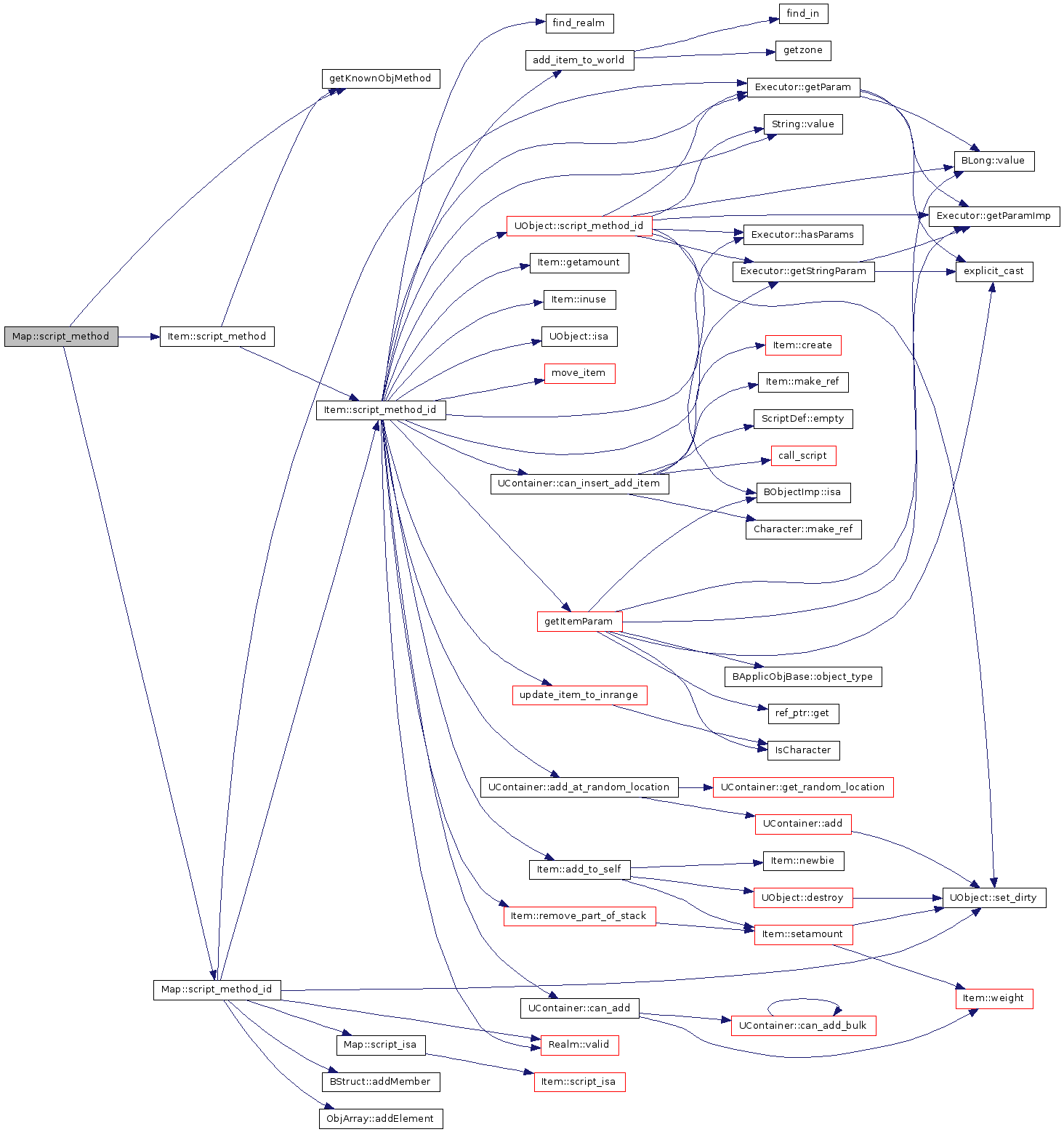

BObjectImp * Map::script_method	(	const char *	methodname,
		Executor &	ex
	)		`[protected, virtual]`

id test

Reimplemented from Item.

Definition at line 285 of file umap.cpp.

References getKnownObjMethod(), ObjMethod::id, Item::script_method(), and script_method_id().

Here is the call graph for this function:

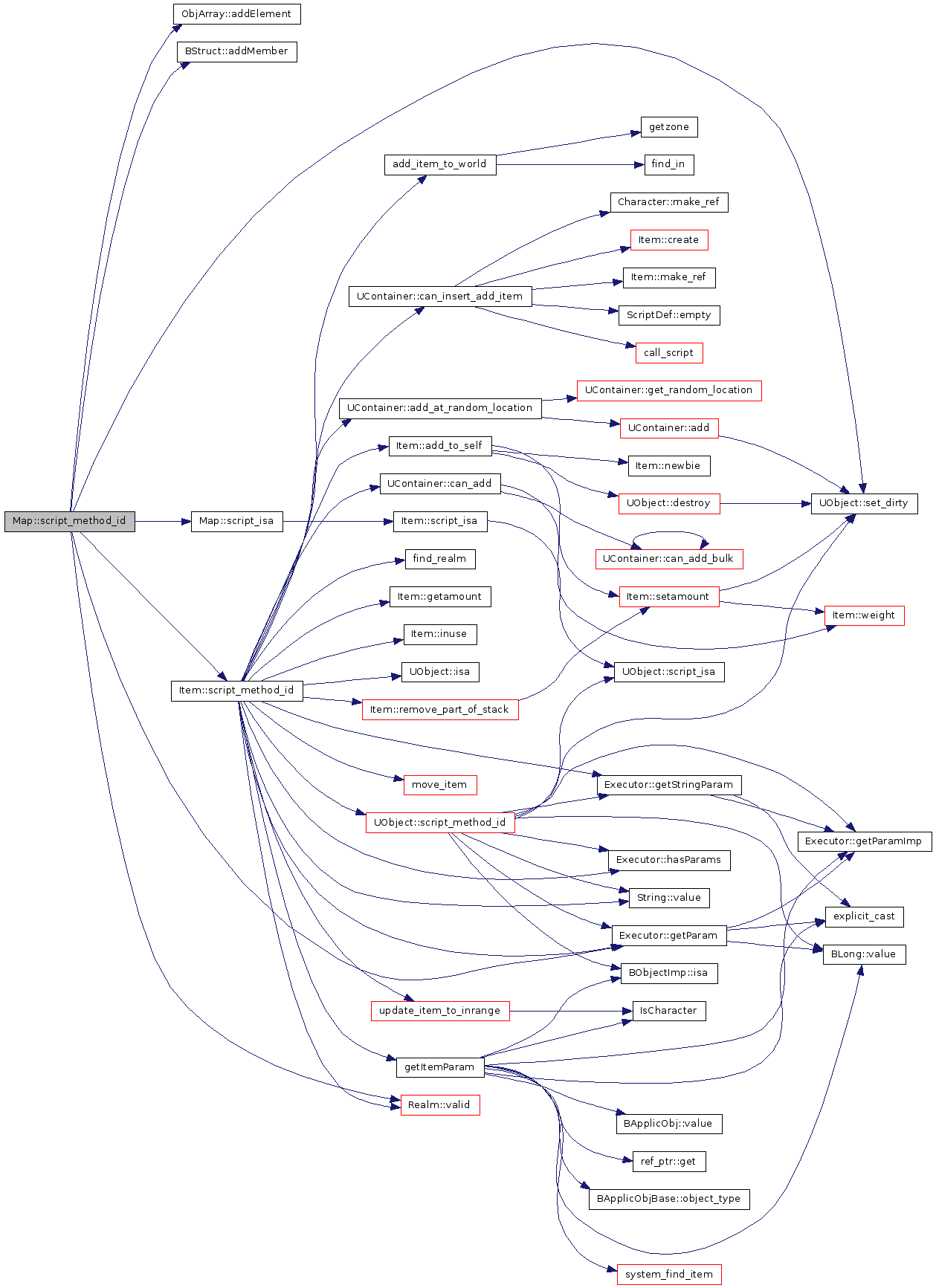

BObjectImp * Map::script_method_id	(	const int	id,
		Executor &	ex
	)		`[protected, virtual]`

Reimplemented from Item.

Definition at line 174 of file umap.cpp.

References ObjArray::addElement(), BStruct::addMember(), Executor::getParam(), MTH_APPENDPIN, MTH_ERASEPIN, MTH_GETPINS, MTH_INSERTPIN, MTH_ISA, pin_points, UObject::realm, script_isa(), Item::script_method_id(), UObject::set_dirty(), Realm::valid(), PinPoint::x, UObject::x, PinPoint::y, and UObject::y.

Referenced by script_method().

Here is the call graph for this function:

Here is the caller graph for this function:

BObjectImp * Map::set_script_member	(	const char *	membername,
		int	value
	)		`[protected, virtual]`

id test

Reimplemented from Item.

Definition at line 2907 of file uoscrobj.cpp.

References getKnownObjMember(), ObjMember::id, and set_script_member_id().

Here is the call graph for this function:

BObjectImp * Map::set_script_member_id	(	const int	id,
		int	value
	)		`[protected, virtual]`

id test

Reimplemented from Item.

Definition at line 2891 of file uoscrobj.cpp.

References gumpheight, gumpwidth, MBR_GUMPHEIGHT, MBR_GUMPWIDTH, MBR_XEAST, MBR_XWEST, MBR_YNORTH, MBR_YSOUTH, Item::set_script_member_id(), xeast, xwest, ynorth, and ysouth.

Referenced by set_script_member().

Here is the call graph for this function:

Here is the caller graph for this function:

u16 Map::worldXtoGumpX ( u16 worldx ) [virtual]

Definition at line 422 of file umap.cpp.

References get_xeast(), get_xwest(), and gumpwidth.

Referenced by builtin_on_use().

Here is the call graph for this function:

Here is the caller graph for this function:

u16 Map::worldYtoGumpY ( u16 worldy ) [virtual]

Definition at line 429 of file umap.cpp.

References get_ynorth(), get_ysouth(), and gumpheight.

Referenced by builtin_on_use().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

Item* Item::create	(	const ItemDesc &	itemdesc,
		u32	serial
	)		`[friend]`

Member Data Documentation

bool Map::editable

Definition at line 31 of file umap.h.

Referenced by clone(), handle_map_pin(), printProperties(), and readProperties().

u16 Map::gumpheight

Definition at line 30 of file umap.h.

Referenced by builtin_on_use(), clone(), get_script_member_id(), gumpYtoWorldY(), printProperties(), readProperties(), set_script_member_id(), and worldYtoGumpY().

u16 Map::gumpwidth

Definition at line 29 of file umap.h.

Referenced by builtin_on_use(), clone(), get_script_member_id(), gumpXtoWorldX(), printProperties(), readProperties(), set_script_member_id(), and worldXtoGumpX().

PinPoints Map::pin_points

Definition at line 34 of file umap.h.

Referenced by builtin_on_use(), clone(), handle_map_pin(), printPinPoints(), readProperties(), and script_method_id().

bool Map::plotting

Definition at line 32 of file umap.h.

Referenced by clone(), and handle_map_pin().

u16 Map::xeast [private]

Definition at line 72 of file umap.h.

Referenced by builtin_on_use(), clone(), get_script_member_id(), get_xeast(), printProperties(), readProperties(), and set_script_member_id().

u16 Map::xwest [private]

Definition at line 71 of file umap.h.

Referenced by builtin_on_use(), clone(), get_script_member_id(), get_xwest(), printProperties(), readProperties(), and set_script_member_id().

u16 Map::ynorth [private]

Definition at line 73 of file umap.h.

Referenced by builtin_on_use(), clone(), get_script_member_id(), get_ynorth(), printProperties(), readProperties(), and set_script_member_id().

u16 Map::ysouth [private]

Definition at line 74 of file umap.h.

Referenced by builtin_on_use(), clone(), get_script_member_id(), get_ysouth(), printProperties(), readProperties(), and set_script_member_id().

The documentation for this class was generated from the following files:
