Pol::UOConvert Namespace Reference

Classes
class	StaticsByZ
Functions
void	create_landtiles_cfg ()
void	create_map (const std::string &realm, unsigned short width, unsigned short height)
void	create_maptile (const std::string &realmname)
void	create_multis_cfg ()
void	create_multis_cfg (FILE *multi_idx, FILE *multi_mul, FILE *multis_cfg)
void	create_tiles_cfg ()
bool	differby_exactly (unsigned char f1, unsigned char f2, unsigned char bits)
void	display_flags ()
bool	flags_match (unsigned int f1, unsigned int f2, unsigned char bits_compare)
void	generate_map ()
short	get_lowestadjacentz (unsigned short x, unsigned short y, short z)
bool	is_cave_exit (USTRUCT_MAPINFO &mi)
bool	is_cave_shadow (USTRUCT_MAPINFO &mi)
bool	is_no_draw (USTRUCT_MAPINFO &mi)
bool	otherflags_match (unsigned char f1, unsigned char f2, unsigned char bits_exclude)
unsigned char	polmap_flags_from_landtile (unsigned short landtile)
void	ProcessSolidBlock (unsigned short x_base, unsigned short y_base, MapWriter &mapwriter)
void	update_map (const std::string &realm, unsigned short x, unsigned short y)
void	write_flags (FILE *fp, unsigned int flags)
void	write_multi (FILE *multis_cfg, unsigned id, FILE *multi_mul, unsigned int offset, unsigned int length)
Variables
std::set< unsigned int >	BoatTypes
bool	cfg_LOS_through_windows = 0
bool	cfg_use_no_shoot = 0
unsigned	empty = 0
std::set< unsigned int >	HouseTypes
std::set< unsigned int >	MountTypes
unsigned	nonempty = 0
std::set< unsigned int >	StairTypes
unsigned	total_statics = 0
unsigned	with_more_solids = 0

---

Function Documentation

void Pol::UOConvert::create_landtiles_cfg

(

)

Definition at line 1007 of file uoconvert.cpp.

References Pol::Core::cfg_use_new_hsa_format, Pol::Core::USTRUCT_LAND_TILE::flags, Pol::Core::USTRUCT_LAND_TILE_HSA::flags, INFO_PRINT, Pol::Core::USTRUCT_LAND_TILE::name, Pol::Core::USTRUCT_LAND_TILE_HSA::name, Pol::Plib::polflags_from_landtileflags(), Pol::Core::readlandtile(), Pol::Core::USTRUCT_LAND_TILE::unk, Pol::Core::USTRUCT_LAND_TILE_HSA::unk, and write_flags().

Here is the call graph for this function:

void Pol::UOConvert::create_map	(	const std::string &	realm,
		unsigned short	width,
		unsigned short	height
	)

Definition at line 235 of file uoconvert.cpp.

References Pol::Tools::Timer< printer >::ellapsed(), empty, INFO_PRINT, nonempty, ProcessSolidBlock(), Pol::Core::rawmapfullread(), Pol::Core::rawstaticfullread(), SOLIDX_X_SIZE, SOLIDX_Y_SIZE, Pol::Tools::Timer< printer >::stop(), total_statics, Pol::Core::uo_map_height, Pol::Core::uo_map_width, Pol::Core::uo_mapid, Pol::Core::uo_usedif, and with_more_solids.

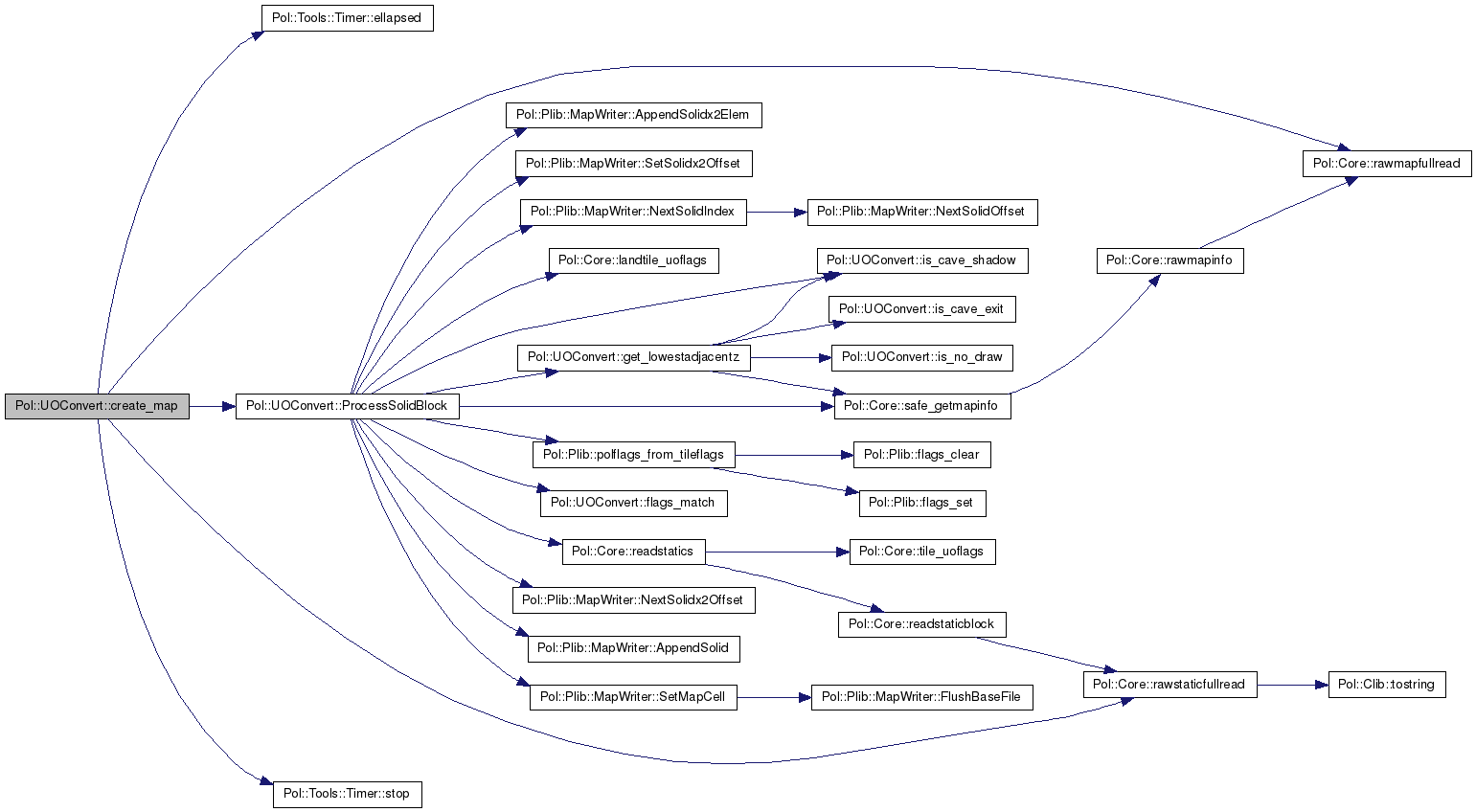

Here is the call graph for this function:

void Pol::UOConvert::create_maptile

(

const std::string &

realmname

)

Definition at line 131 of file uoconvert.cpp.

References Pol::Core::USTRUCT_TILE::FLAG_LIQUID, Pol::Plib::RealmDescriptor::height, INFO_PRINT, Pol::Plib::MAPTILE_CELL::landtile, Pol::Core::USTRUCT_MAPINFO::landtile, Pol::Core::landtile_uoflags(), Pol::Plib::RealmDescriptor::Load(), Pol::Plib::MAPTILE_CHUNK, Pol::Core::safe_getmapinfo(), Pol::Core::uo_map_height, Pol::Core::uo_map_width, Pol::Plib::RealmDescriptor::uodif, Pol::Plib::RealmDescriptor::uomapid, Pol::Plib::RealmDescriptor::width, Pol::Plib::MAPTILE_CELL::z, and Pol::Core::USTRUCT_MAPINFO::z.

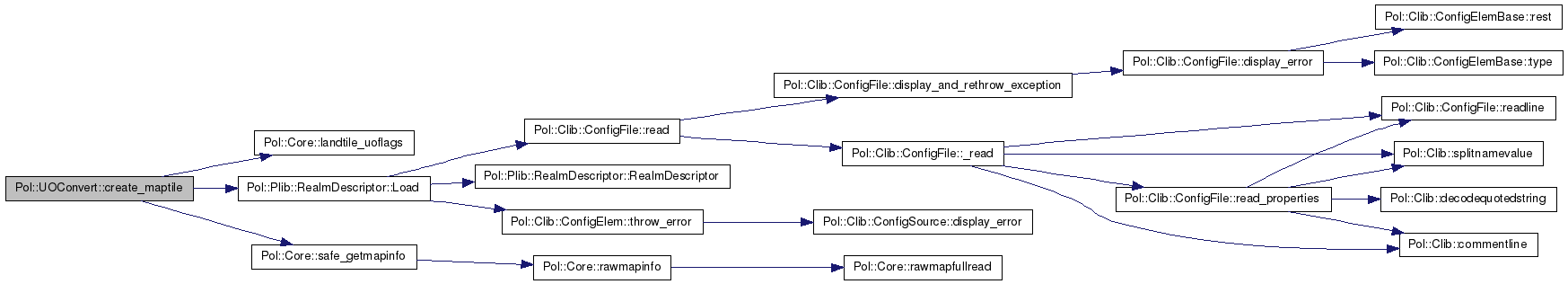

Here is the call graph for this function:

void Pol::UOConvert::create_multis_cfg

(

)

Definition at line 908 of file uoconvert.cpp.

References Pol::Core::open_uo_file().

Here is the call graph for this function:

void Pol::UOConvert::create_multis_cfg	(	FILE *	multi_idx,
		FILE *	multi_mul,
		FILE *	multis_cfg
	)

Definition at line 881 of file uoconvert.cpp.

References Pol::Core::check_verdata(), Pol::Core::USTRUCT_VERSION::filepos, Pol::Core::idxrec, INFO_PRINT, Pol::Core::USTRUCT_VERSION::length, Pol::Core::USTRUCT_IDX::length, Pol::Core::USTRUCT_IDX::offset, Pol::Core::verfile, VERFILE_MULTI_MUL, and write_multi().

Here is the call graph for this function:

void Pol::UOConvert::create_tiles_cfg

(

)

Definition at line 938 of file uoconvert.cpp.

References Pol::Core::USTRUCT_TILE::anim, Pol::Core::USTRUCT_TILE_HSA::anim, cfg_LOS_through_windows, Pol::Core::cfg_use_new_hsa_format, cfg_use_no_shoot, Pol::Plib::SystemState::config, Pol::Plib::FLAG::EQUIPPABLE, Pol::Core::USTRUCT_TILE::flags, Pol::Core::USTRUCT_TILE_HSA::flags, Pol::Core::USTRUCT_TILE::height, Pol::Core::USTRUCT_TILE_HSA::height, INFO_PRINT, Pol::Core::USTRUCT_TILE::layer, Pol::Core::USTRUCT_TILE_HSA::layer, Pol::Core::PolConfig::max_tile_id, MountTypes, Pol::Core::USTRUCT_TILE::name, Pol::Core::USTRUCT_TILE_HSA::name, Pol::Plib::polflags_from_tileflags(), Pol::Core::read_objinfo(), Pol::Plib::systemstate, Pol::Core::USTRUCT_TILE::unk14, Pol::Core::USTRUCT_TILE_HSA::unk14, Pol::Core::USTRUCT_TILE::unk15, Pol::Core::USTRUCT_TILE_HSA::unk15, Pol::Core::USTRUCT_TILE::unk6, Pol::Core::USTRUCT_TILE_HSA::unk6, Pol::Core::USTRUCT_TILE::unk7, Pol::Core::USTRUCT_TILE_HSA::unk7, Pol::Core::USTRUCT_TILE::unk8, Pol::Core::USTRUCT_TILE_HSA::unk8, Pol::Core::USTRUCT_TILE::unk9, Pol::Core::USTRUCT_TILE_HSA::unk9, Pol::Core::USTRUCT_TILE::weight, Pol::Core::USTRUCT_TILE_HSA::weight, and write_flags().

Here is the call graph for this function:

bool Pol::UOConvert::differby_exactly	(	unsigned char	f1,
		unsigned char	f2,
		unsigned char	bits
	)

Definition at line 208 of file uoconvert.cpp.

void Pol::UOConvert::display_flags

(

)

Definition at line 85 of file uoconvert.cpp.

References cfg_LOS_through_windows, cfg_use_no_shoot, Pol::Core::USTRUCT_TILE::FLAG__WALK, Pol::Core::USTRUCT_TILE::FLAG_BLOCKING, Pol::Core::USTRUCT_TILE::FLAG_FLOOR, Pol::Core::USTRUCT_TILE::FLAG_HALF_HEIGHT, Pol::Core::USTRUCT_TILE::FLAG_PLATFORM, Pol::Core::USTRUCT_TILE::FLAG_WALL, INFO_PRINT, Pol::Plib::FLAG::MOVELAND, and Pol::Plib::polflags_from_tileflags().

Here is the call graph for this function:

bool Pol::UOConvert::flags_match	(	unsigned int	f1,
		unsigned int	f2,
		unsigned char	bits_compare
	)

Definition at line 194 of file uoconvert.cpp.

Referenced by ProcessSolidBlock().

Here is the caller graph for this function:

void Pol::UOConvert::generate_map

(

)

short Pol::UOConvert::get_lowestadjacentz	(	unsigned short	x,
		unsigned short	y,
		short	z
	)

Definition at line 317 of file uoconvert.cpp.

References is_cave_exit(), is_cave_shadow(), is_no_draw(), Pol::Core::safe_getmapinfo(), Pol::Core::uo_map_height, and Pol::Core::uo_map_width.

Referenced by ProcessSolidBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

bool Pol::UOConvert::is_cave_exit

(

USTRUCT_MAPINFO &

mi

)

Definition at line 278 of file uoconvert.cpp.

References Pol::Core::USTRUCT_MAPINFO::landtile.

Referenced by get_lowestadjacentz().

Here is the caller graph for this function:

bool Pol::UOConvert::is_cave_shadow

(

USTRUCT_MAPINFO &

mi

)

Definition at line 303 of file uoconvert.cpp.

References Pol::Core::USTRUCT_MAPINFO::landtile.

Referenced by get_lowestadjacentz(), and ProcessSolidBlock().

Here is the caller graph for this function:

bool Pol::UOConvert::is_no_draw

(

USTRUCT_MAPINFO &

mi

)

Definition at line 273 of file uoconvert.cpp.

References Pol::Core::USTRUCT_MAPINFO::landtile.

Referenced by get_lowestadjacentz().

Here is the caller graph for this function:

bool Pol::UOConvert::otherflags_match	(	unsigned char	f1,
		unsigned char	f2,
		unsigned char	bits_exclude
	)

Definition at line 201 of file uoconvert.cpp.

unsigned char Pol::UOConvert::polmap_flags_from_landtile

(

unsigned short

landtile

)

Definition at line 121 of file uoconvert.cpp.

References cfg_LOS_through_windows, cfg_use_no_shoot, Pol::Core::landtile_uoflags(), and Pol::Plib::polflags_from_tileflags().

Here is the call graph for this function:

void Pol::UOConvert::ProcessSolidBlock	(	unsigned short	x_base,
		unsigned short	y_base,
		MapWriter &	mapwriter
	)

Definition at line 458 of file uoconvert.cpp.

References Pol::Plib::SOLIDX2_ELEM::addindex, Pol::Plib::MapWriter::AppendSolid(), Pol::Plib::MapWriter::AppendSolidx2Elem(), Pol::Plib::SOLIDX2_ELEM::baseindex, Pol::Plib::FLAG::BLOCKING, Pol::Plib::FLAG::BLOCKSIGHT, cfg_LOS_through_windows, cfg_use_no_shoot, empty, Pol::Core::USTRUCT_TILE::FLAG_BLOCKING, Pol::Core::USTRUCT_TILE::FLAG_FLOOR, Pol::Core::USTRUCT_TILE::FLAG_HALF_HEIGHT, Pol::Core::USTRUCT_TILE::FLAG_HOVEROVER, Pol::Core::USTRUCT_TILE::FLAG_LIQUID, Pol::Core::USTRUCT_TILE::FLAG_NO_SHOOT, Pol::Core::USTRUCT_TILE::FLAG_PLATFORM, Pol::Core::USTRUCT_TILE::FLAG_WALL, Pol::Plib::MapShape::flags, Pol::Core::StaticRec::flags, Pol::Plib::SOLIDS_ELEM::flags, Pol::Plib::MAPCELL::flags, flags_match(), get_lowestadjacentz(), Pol::Plib::FLAG::GRADUAL, Pol::Core::StaticRec::graphic, Pol::Plib::MapShape::height, Pol::Core::StaticRec::height, Pol::Plib::SOLIDS_ELEM::height, INFO_PRINT, is_cave_shadow(), Pol::Core::USTRUCT_MAPINFO::landtile, Pol::Core::landtile_uoflags(), Pol::Plib::FLAG::MORE_SOLIDS, Pol::Plib::FLAG::MOVELAND, Pol::Plib::FLAG::MOVESEA, Pol::Plib::MapWriter::NextSolidIndex(), Pol::Plib::MapWriter::NextSolidx2Offset(), nonempty, Pol::Plib::FLAG::OVERFLIGHT, passert_always, Pol::Plib::polflags_from_tileflags(), Pol::Core::readstatics(), Pol::Core::safe_getmapinfo(), Pol::Plib::MapWriter::SetMapCell(), Pol::Plib::MapWriter::SetSolidx2Offset(), SOLIDX_X_SIZE, SOLIDX_Y_SIZE, total_statics, Pol::Core::uo_map_height, Pol::Core::uo_map_width, with_more_solids, Pol::Plib::MapShape::z, Pol::Core::StaticRec::z, Pol::Plib::SOLIDS_ELEM::z, Pol::Plib::MAPCELL::z, and Pol::Core::USTRUCT_MAPINFO::z.

Referenced by create_map(), and update_map().

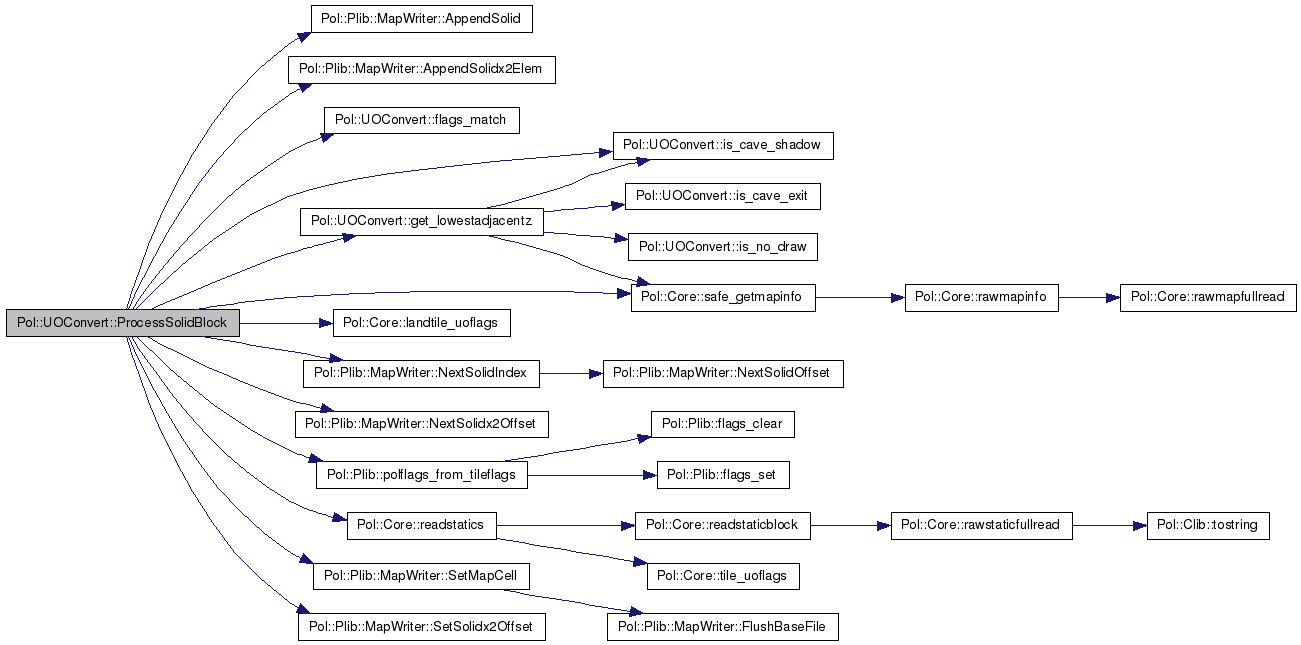

Here is the call graph for this function:

Here is the caller graph for this function:

void Pol::UOConvert::update_map	(	const std::string &	realm,
		unsigned short	x,
		unsigned short	y
	)

Definition at line 219 of file uoconvert.cpp.

References empty, INFO_PRINT, nonempty, ProcessSolidBlock(), Pol::Core::rawmapfullread(), Pol::Core::rawstaticfullread(), SOLIDX_X_SIZE, SOLIDX_Y_SIZE, total_statics, and with_more_solids.

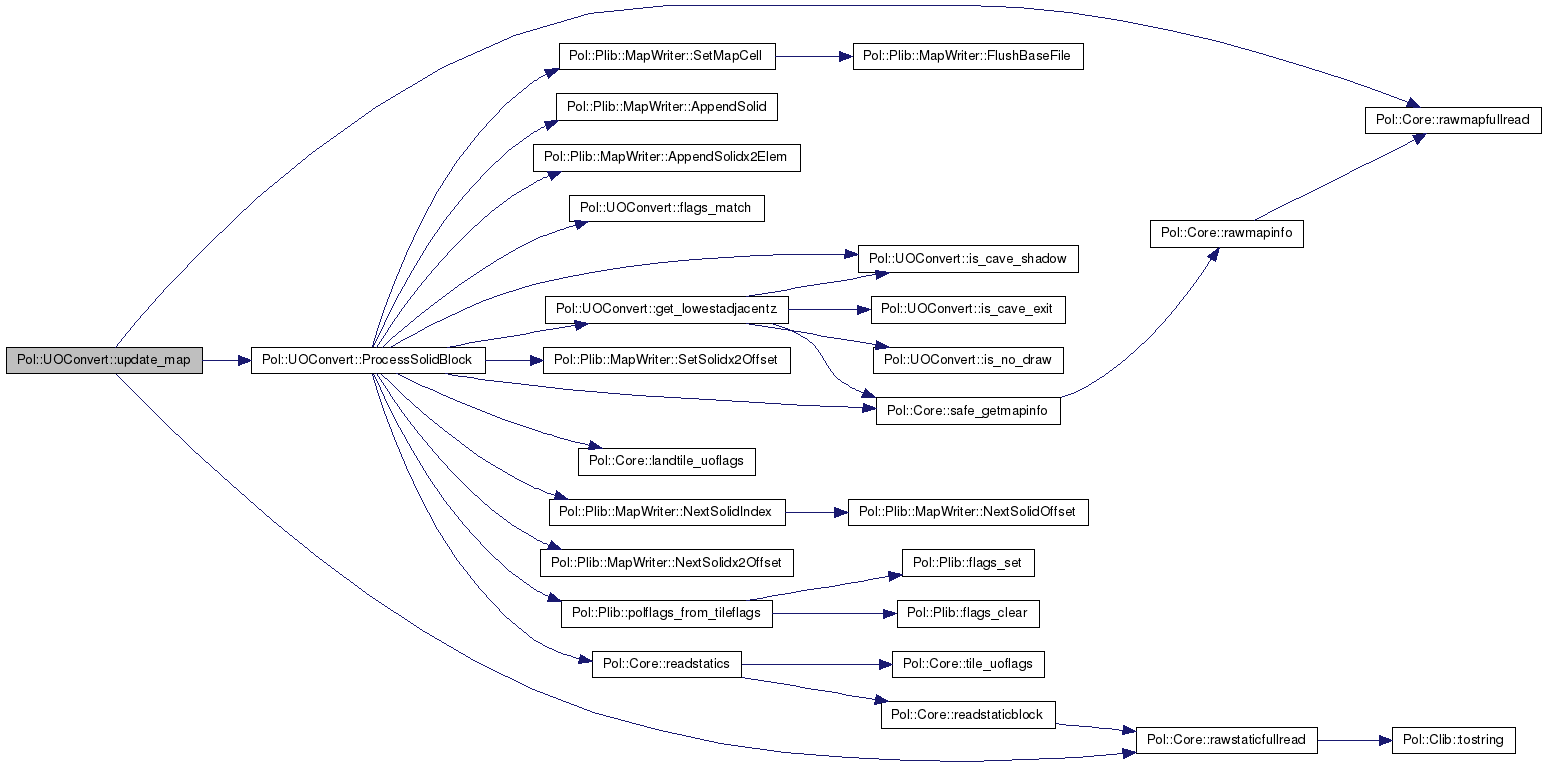

Here is the call graph for this function:

void Pol::UOConvert::write_flags	(	FILE *	fp,
		unsigned int	flags
	)

Definition at line 922 of file uoconvert.cpp.

References Pol::Plib::FLAG::ALLOWDROPON, Pol::Plib::FLAG::BLOCKING, Pol::Plib::FLAG::BLOCKSIGHT, Pol::Plib::FLAG::DESC_PREPEND_A, Pol::Plib::FLAG::DESC_PREPEND_AN, Pol::Plib::FLAG::EQUIPPABLE, Pol::Plib::FLAG::GRADUAL, Pol::Plib::FLAG::MOVABLE, Pol::Plib::FLAG::MOVELAND, Pol::Plib::FLAG::MOVESEA, Pol::Plib::FLAG::OVERFLIGHT, and Pol::Plib::FLAG::STACKABLE.

Referenced by create_landtiles_cfg(), and create_tiles_cfg().

Here is the caller graph for this function:

void Pol::UOConvert::write_multi	(	FILE *	multis_cfg,
		unsigned	id,
		FILE *	multi_mul,
		unsigned int	offset,
		unsigned int	length
	)

Definition at line 803 of file uoconvert.cpp.

References BoatTypes, Pol::Core::cfg_use_new_hsa_format, ERROR_PRINT, Pol::Core::USTRUCT_MULTI_ELEMENT::flags, Pol::Core::USTRUCT_MULTI_ELEMENT::graphic, GRAPHIC_NODRAW, HouseTypes, Pol::Core::USTRUCT_TILE::name, Pol::Core::USTRUCT_TILE_HSA::name, Pol::Core::readtile(), StairTypes, Pol::Core::USTRUCT_MULTI_ELEMENT::x, Pol::Core::USTRUCT_MULTI_ELEMENT::y, and Pol::Core::USTRUCT_MULTI_ELEMENT::z.

Referenced by create_multis_cfg().

Here is the call graph for this function:

Here is the caller graph for this function:

---

Variable Documentation

std::set<unsigned int> Pol::UOConvert::BoatTypes

Definition at line 70 of file uoconvert.cpp.

Referenced by write_multi().

bool Pol::UOConvert::cfg_LOS_through_windows = 0

Definition at line 67 of file uoconvert.cpp.

Referenced by create_tiles_cfg(), display_flags(), polmap_flags_from_landtile(), and ProcessSolidBlock().

bool Pol::UOConvert::cfg_use_no_shoot = 0

Definition at line 66 of file uoconvert.cpp.

Referenced by create_tiles_cfg(), display_flags(), polmap_flags_from_landtile(), and ProcessSolidBlock().

unsigned Pol::UOConvert::empty = 0

Definition at line 215 of file uoconvert.cpp.

Referenced by create_map(), Pol::Plib::MapWriter::CreateBaseDat(), ProcessSolidBlock(), and update_map().

std::set<unsigned int> Pol::UOConvert::HouseTypes

Definition at line 69 of file uoconvert.cpp.

Referenced by write_multi().

std::set<unsigned int> Pol::UOConvert::MountTypes

Definition at line 72 of file uoconvert.cpp.

Referenced by create_tiles_cfg().

unsigned Pol::UOConvert::nonempty = 0

Definition at line 215 of file uoconvert.cpp.

Referenced by create_map(), ProcessSolidBlock(), and update_map().

std::set<unsigned int> Pol::UOConvert::StairTypes

Definition at line 71 of file uoconvert.cpp.

Referenced by write_multi().

unsigned Pol::UOConvert::total_statics = 0

Definition at line 216 of file uoconvert.cpp.

Referenced by create_map(), ProcessSolidBlock(), and update_map().

unsigned Pol::UOConvert::with_more_solids = 0

Definition at line 217 of file uoconvert.cpp.

Referenced by create_map(), ProcessSolidBlock(), and update_map().
